1658614-4
Manufacturer:
TE Connectivity
Mfr.Part #:
1658614-4
Datasheet:
Description:

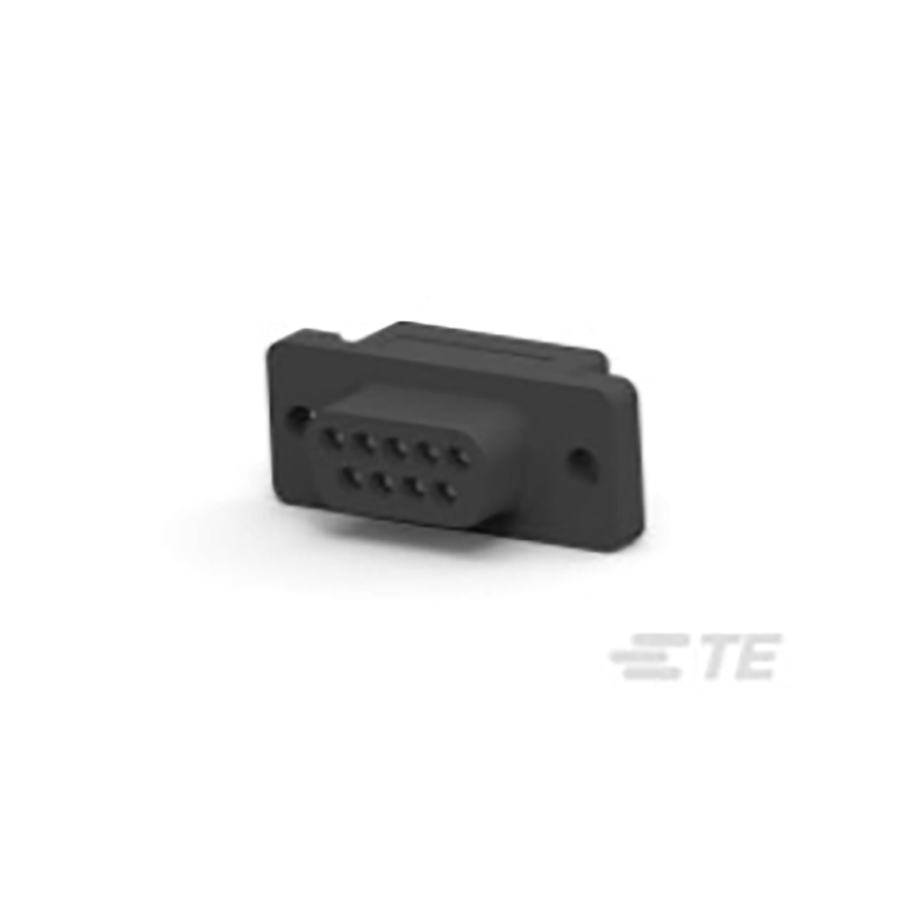

D-Sub Connectors Free Hanging Receptacle Number of Positions:9 IDC Receptacle
| Parameter | Value |
|---|---|
| Length | 30.88 mm |
| Width | 12.59 mm |
| Termination | IDC |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 9 |
| Height | 12.59 mm |
| Material | Plastic |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 18.61 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.76 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.76 mm |
| Type | Receptacle |
| Number of Terminals | 9 |
| Current Rating | 1.25 A |
| Max Current Rating | 1.25 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Color | Black |
| Gender | Receptacle |
| Shielding | Shielded |
| Number of Contacts | 9 |
| ELV | Compliant |
| Body Material | Plastic |
| Wire/Cable Diameter | 970 µm |
| Connector Type | Receptacle |
| Contact Type | Signal |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Housing Material | Thermoplastic |
| Wire/Cable Type | Ribbon |
| Number of Ports | 1 |
| Circuit Application | Signal |
| Contact Resistance | 25 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Max Supply Voltage (AC) | 250 V |
| Housing Color | Black |
| Plating | Thermoplastic |
| Preloaded | Yes |
| Shell Material | Plastic |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Sealable | No |
Stock: 582
Distributors
pcbx
pcbxUnit Price$4.59952
Ext.Price$4.59952
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.59952 | $4.59952 |
| 10 | $4.15496 | $41.54960 |
| 25 | $3.76767 | $94.19175 |
| 50 | $3.43452 | $171.72600 |
| 100 | $3.13083 | $313.08300 |
| 300 | $2.85399 | $856.19700 |
| 500 | $2.60163 | $1300.81500 |
| 1000 | $2.37157 | $2371.57000 |
